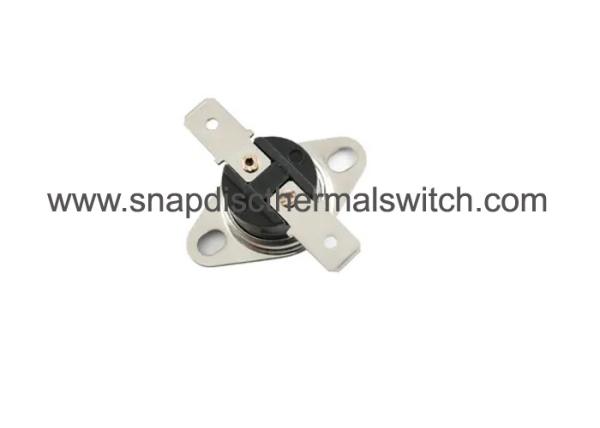

Single Throw Snap-Action KSD301 250V 10A 16A Thermostat for Water Heater

Brand Name : Yusheng

Model Number : KSD301

Certification : CQC. TUV, VDE, UL, CB, ROHS, REACH

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 1,000,000 Pcs Per Month

Delivery Time : 7-10 work days

Packaging Details : 1000PCS or 2000PCS Per Carton, Carton Size: 280*270*320mm

Model : KSD301

Reset Type : Auto Reset, Manual Reset

Rated Volts & Amps : 250V AC 10A/16A

Contact Type : Normally Closed or Normally Open

Temperature Range : 0～250℃

Cover : Fixed / Movable / Screw

Tolerance : +/-5 C for open action(Optional +/-3 C or less), +/-5C

Diameter of bimetal disc : 12.8 mm (1/2)

Life Cycle : 100,000 cycles

Contact Now

Single Throw Snap-Action KSD301 250V 10A 16A Thermostat for Water Heater

Quick Detail:

ModelKSD301
Reset TypeAuto Reset
Single Pole,Single Throw(SPST)
Body Material:Ceramic
Rated Voltage & Current250V AC 10A/16A
Contact Type

Normally Closed(Open on Rise) or Normally Open(Close on Rise)

Operating Temperature Range

0～150℃ (Bakelite Body),0～250℃ (Ceramic Body)

Temperature differentials8.5～55℃ (difference between off and on temperatures)
Temperature tolerance±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance≤50mΩ
Insulation Resistance≥100MΩ
Dielectric Strength≥1500V
Life Cycle100,000 Cycles
CertificateCQC,TUV,UL,VDE,ROHS,REACH


Description:

KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.

Specifications:

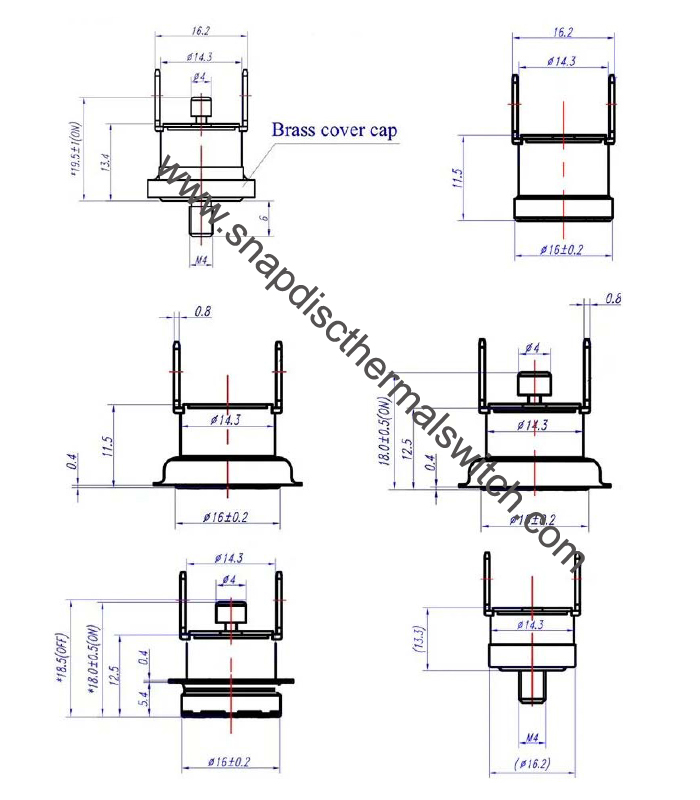

1. Dimensional Outline
Single Throw Snap-Action KSD301 250V 10A 16A Thermostat for Water Heater

3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action TemperatureReset TemperatureAction TemperatureReset Temperature
45±3℃35±5℃145±5℃125±7℃
50±3℃40±5℃150±5℃130±7℃
55±3℃45±5℃155±5℃135±7℃
60±3℃50±5℃160±5℃140±8℃
65±3℃50±5℃165±6℃145±8℃
70±3℃55±5℃170±6℃150±8℃
75±3℃60±5℃175±6℃155±8℃
80±3℃65±5℃180±7℃160±10℃
85±3℃70±5℃185±7℃155±10℃
90±3℃75±5℃190±7℃160±10℃
95±3℃80±5℃195±7℃165±10℃
100±4℃85±6℃200±8℃170±10℃
105±4℃85±6℃205±8℃175±10℃
110±4℃90±6℃210±8℃180±10℃
115±5℃95±6℃215±10℃185±10℃
120±5℃100±6℃220±10℃190±10℃
125±5℃105±6℃230±10℃200±10℃
130±5℃110±6℃240±10℃205±12℃
135±5℃115±6℃250±10℃210±15℃
140±5℃120±7℃　　
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃


Applications:

KSD301 series thermostats are mainly used lectric appliances: water dispenser, kettle, rice cooker, dishwasher,
microwave, cooffee maker, washing machine, oven etc., to provide temperature control or overheat protection.
Single Throw Snap-Action KSD301 250V 10A 16A Thermostat for Water Heater

Competitive Advantages:

1. Easy mounting
2. High precision
3. High reliability, Durable
4. Long life cycles
5. Rapid heat transmission
6. Every product will be tested, extremely high temperature pass rate.

Tag:

Temperature cutoff switch, snap disc thermostat, thermal overload switch
